Create Your Style Simply
The advanced dual rings on fan and the RGB LOGO on pump can sync with motherboard software, and build in with 55 lighting effects including Neon-Flex RGB, Multi-color and LED off. Simply create your own PC style by pressing button to switch to MB mode for software adjustment or exchange to various effects and fan speed with the compact remote controller.
As an all-in-one liquid cooler, CHIONE M1A-240R does not take much space and offers more options upon installation. The amazing design makes the installation and maintenance no longer a nightmare.
Integrate Your Style
Add up to 6 fans & 2 additional LED strips together to exhibit group lighting effects, fan speed with AEOLUS BoxⅡand it easily fits inside your case with built in magnet. With Daisy Chain Topology, no matter how many fans you build in the case, you can always connect them through more than one AEOLUS BoxⅡto make the adjustments at one time.
CHIONE M1A-240R comes with the leak-free Teflon Tube which makes the liquid evaporate at an extremely low rate. The tube remains anti-explosive despite high pressure and extreme heat triggered by the cooling process. Hence, this makes CHIONE M1A-240R a tremendously durable cooler.
One Click, Sync All
CHIONE M1A-240R supports motherboard sync software that have addressable RGB header (ASUS), JRAINBOW (MSI) or Digital Pin Header (GIGABYTE), makes you easier to unite your case from chaos to calm.
Outstanding Thermal Conductivity
The copper base plate maximizes heat dissipation to offer a superior performance of cooling.

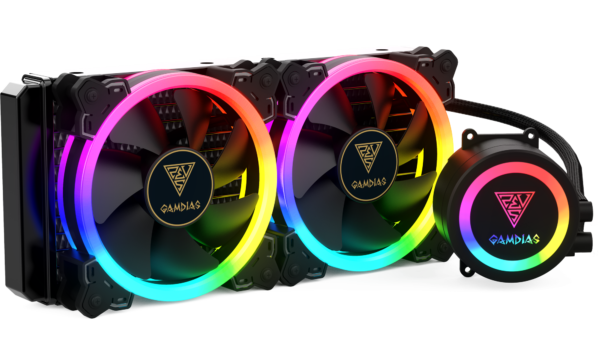

CHIONE M1A-240R OVERVIEW
“Stylish and valuable”
CHIONE M1A-240R is more than just a liquid cooler. Along with the outstanding thermal conductivity of copper base plate, 2 high-quality 12cm fans, CHIONE M1A-240R is featuring AEOLUS BoxⅡand compact remote controller, integrates lighting effects and fans speed with motherboard, simply create your own style, make your PC setup experience more convenient and complete.
- Remote Controller Both fans and pump can sync with mother board software or remote control and can easily switch to 55 lighting effects including Neon-Flex RGB, Multi-color and LED off Dual Rings with RGB LOGO lighting effect
- All-In-One CPU Liquid Cooler Offer maintenance-free, compact & easy-to-install Both sides can be installed fan
- AEOLUS BoxⅡ Add up to 6 fans & 2 additional LED strips together to exhibit group lighting effects with AEOLUS BoxⅡ AEOLUS BoxⅡattaches to the computer case via magnets 18 addressable RGB LEDs in one fan Daisy chain another AEOLUS BoxⅡ for more lighting effects
- Teflon Tube Low-evaporation and durable
- Sync to MSI, GIGABYTE, and ASUS Supports motherboard sync software that have addressable RGB header (ASUS), JRAINBOW (MSI) or Digital Pin Header (GIGABYTE)
- Copper Base Plate Outstanding thermal conductivity
|AEOLUS BOX II||1|
|All-In-One CPU Liquid Cooler||1|
|Dimensions||120 x 120 x 25 mm|
|Speed||800 – 1500 RPM ±10%|
|Noise Level||16 – 22 dBA|
|Air Flow||55 CFM|
|Air Pressure||1.94 mmH2O|
|Rated Voltage||12 V (Fan) / 5V(LED)|
|Radiator Dimensions||274 x 119 x 27 mm|
|Base Plate Material||Copper|
|Rated Voltage||12 V (Pump) / 5V(LED)|
|Pump Connector||3 Pin|
|Compatibility||LGA2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1|
|Selectable Fan Speeds||Yes|
|Selectable Light Speeds||Yes|
|AEOLUS Box II|
|Dimensions||85 x 54 x 15 mm|
|Support LED type||5V 3-pin Addressable (Digital) LED|
|Support Motherboard RGB Sync Connectors||5V 3-pin Addressable (Digital) LED Header|
|Support Daisy Chain Another AEOLUS Box II||Yes|
|Note: Actual products may vary due to product enhancement and are mainly based on specifications on package.|
