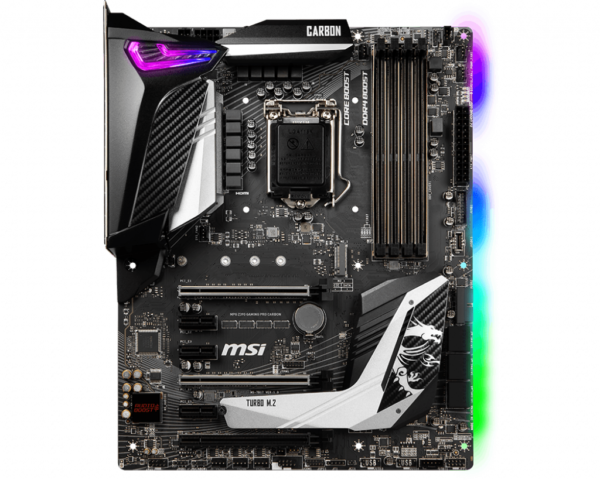

MSI MPG Z390 GAMING PRO CARBON Intel Motherboard

Inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield Frozr, Intel Gaming LAN, Front USB 3.1 Gen2 connector

• Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket
• Supports DDR4 Memory, up to 4400(OC) MHz
• MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
• Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. M.2 Shield Frozr, Turbo USB 3.1 GEN2
• Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Game Boost, DDR4 Boost with Steel Armor
• AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications

• SOCKET – 1151
• CPU (MAX SUPPORT) – i9
• CHIPSET – Intel® Z390
• DDR4 MEMORY – 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133
• MEMORY CHANNEL – Dual
• DIMM SLOTS – 4
• MAX MEMORY (GB) – 128
• PCI-E X16 – 3
• PCI-E GEN – Gen3
• PCI-E X1 – 3
• SATAIII – 6
• M.2 SLOT – 2
• RAID – 0/1/5/10
• TPM (HEADER) – 1
• LAN – 1x Intel® I219-V
• USB 3.1 PORTS (FRONT) – 1(Gen2, Type C), 4(Gen1, Type A)
• USB 3.1 PORTS (REAR) – 1(Gen2, Type C), 3(Gen2, Type A)
• USB 2.0 PORTS (FRONT) – 4
• USB 2.0 PORTS (REAR) – 2
• SERIAL PORTS(FRONT) – 1
• AUDIO PORTS (REAR) – Realtek® ALC1220P Codec
• DISPLAYPORT – 1
• HDMI – 1
• DIRECTX – 12
• FORM FACTOR – ATX
• SLI – Y
• CROSSFIRE – Y
• OPERATING SYSTEM – Support for Windows® 10 64-bit
