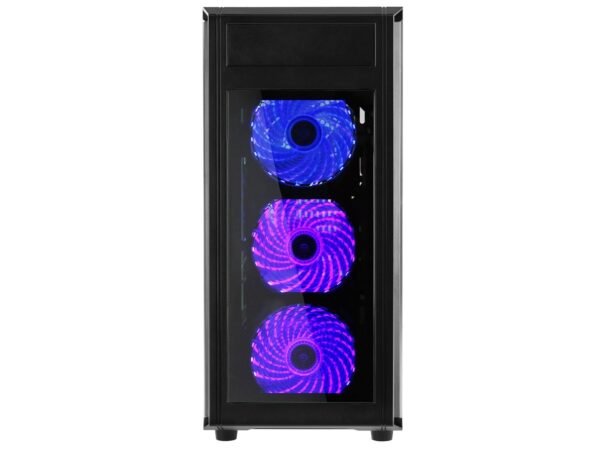

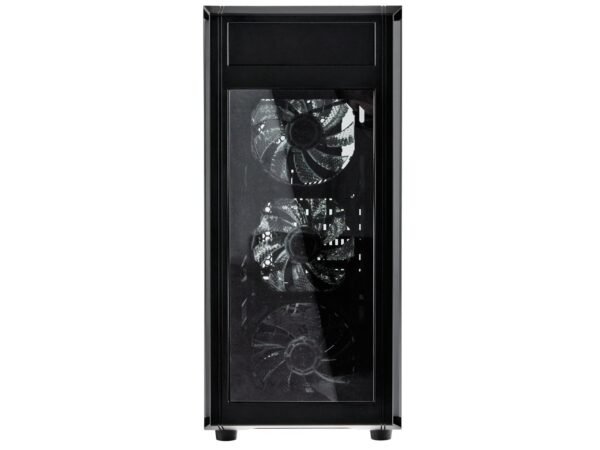

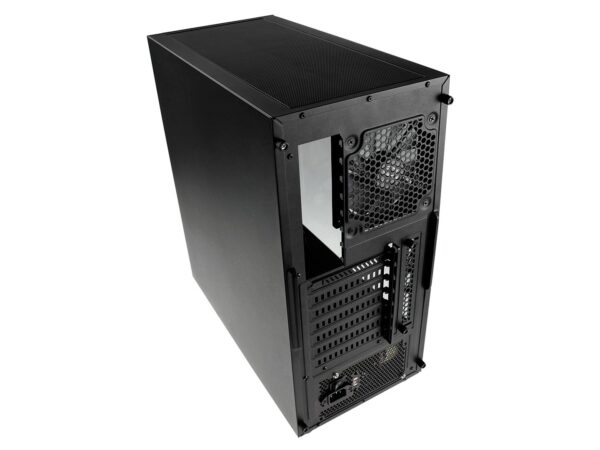

Raidmax Alpha Prime RGB PC Case – Black

Model

Brand

– RAIDMAX

Series

– ALPHA Prime

Model

– ALPHA-TTB

Details

Type

– ATX Mid Tower

Color

– Black

Case Material

– Steel / Plastic

With Power Supply

– No

Power Supply Mounted

– Bottom

Motherboard Compatibility

– Micro ATX / ATX / Mini-ITX

Side Panel Window

– Yes

Expansion

External 5.25″ Drive Bays

– 1

External 3.5″ Drive Bays

– 0

Internal 3.5″ Drive Bays

– 2 (Compatible with 2.5 HDD or SSD)

Internal 2.5″ Drive Bays

– 2 + 2 (convert from 3.5 HDD brackets)

Expansion Slots

– 7

Front Panel Ports

Front Ports

– USB 3.0 x 2, Audio x 2 (HD compatible)

Cooling System

Fan Options

– Front: 3 x 120mm RGB fans with remote control (incldued)

– Rear: 1 x 120mm (included)

– Top: 3 x 120mm or 2 x 140mm

Radiator Options

– Front – Up to 360mm / Top – Up to 240mm

Dimensions & Weight

Max GPU Length Allowance

– 390 mm

Max CPU Cooler Height Allowance

– 175 mm

Max PSU Length

– 180 mm

Dimensions (H x W x D)

– 17.25″ x 8.25″ x 18.25″

Weight

– 14.56 lbs.

Additional Info

Features

– Front panel 120 mm RGB Led fans x 3 with Remote control

– Tempered Glass front panel and Side panel

– Cable management friendly design behind the motherboard tray

– Bottom mounted PSU design with filter, full size PSU support

– Support Video Card length up to 15.35 inches (390 mm)

– High speed USB 3.0 top mounted and HD Audio

– Liquid cooling support up to 360 mm on front panel and Top panel (may interfere 5.25” drive bay)

– Removable dust filter on the top

– Cooling System
* Front: 120 mm RGB fans x 3 with remote control
* Rear: 1 x 120 mm (included)
* Top: 3 x 120 mm or 2 x 140 mm(optional)
